3 Core 600V ACWU90

VOLTAGE: 600V
CONDUCTOR: Stranded AA-8000 Series Aluminum Alloy (ACM)
INSULATION: Cross-linked Polyethylene (XLPE)
COLOUR CODE: Black with White Numbering or Colour Coded
BONDING CONDUCTOR: Stranded Bare AA-8000 Series Aluminum Alloy (ACM)
ARMOUR: Aluminum Interlock Armour (AIA)
JACKET: Low Acid Gas Polyvinyl Chloride (PVC)

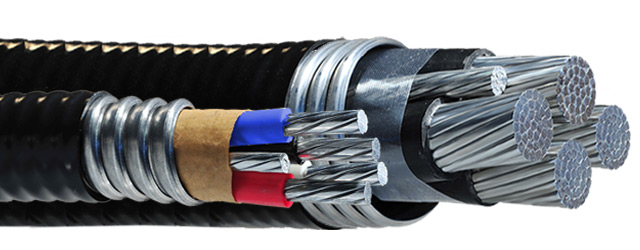

4 Core 600V ACWU90

VOLTAGE: 600V
CONDUCTOR: Stranded AA-8000 Series Aluminum Alloy (ACM)
INSULATION: Cross-linked Polyethylene (XLPE)
COLOUR CODE: Black with White Numbering or Colour Coded
BONDING CONDUCTOR: Stranded AA-8000 Series Aluminum Alloy (ACM)
ARMOUR: Aluminum Interlock Armour (AIA)
JACKET: Low Acid Gas Polyvinyl Chloride (PVC)

ACWU90  Cable Specifications and Compliance:

  • CSA C22.2 No. 51, Armoured Cables
  • CSA C22.2 No. 38, Thermoset-insulated wires and cables
  • CSA C22.2 No. 174, Cables and cable glands for use in hazardous locations
  • CSA C22.2 No. 2556, FT4 Vertical-Tray Flame Test
  • -40°C Cold Bend and -40°C Cold Impact
  • Sunlight Resistant, SUN RES and Low Acid Gas, AG14

ACWU90  Cable Applications:

  • For wet and dry locations.
  • To be used for exposed and concealed wiring or where subject to the weather.
  • For direct earth burial and service entrance above or below ground.
  • Used in ventilated, non-ventilated and ladder-type cable trays.
  • Approved for all hazardous locations as per CEC Part 2018 Section 18, when installed with approved connectors.

3 Core Copper AC90

  •  VOLTAGE: 600V
  • CONDUCTOR: Solid or Stranded Soft Bare Copper, ASTM B3 and ASTM B8
  • INSULATION: Cross-linked Polyethylene (XLPE)
  • COLOUR CODE: Black, White and Red
  • BONDING CONDUCTOR: Solid or Stranded Soft Bare Copper, ASTM B3 and ASTM B8
  • ARMOUR: Aluminum Interlock Armour (AIA).

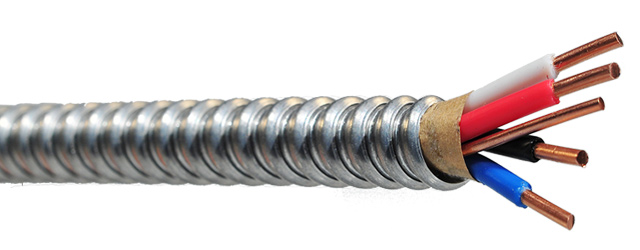

4 Core Copper AC90

  • VOLTAGE: 600V
  • CONDUCTOR: Solid Soft Bare Copper, ASTM B3
  • INSULATION: Cross-linked Polyethylene (XLPE)
  • COLOUR CODE: Black, White, Red and Blue
  • BONDING CONDUCTOR: Solid Soft Bare Copper, ASTM B3
  • ARMOUR: Aluminum Interlock Armour (AIA)

AC90 Cable Specifications and Compliance:

  • CSA C22.2 No. 51, Armoured Cables
  • CSA C22.2 No. 38 Thermoset-insulated wires and cables
  • CSA C22.2 No. 2556 FT4-ST1 Vertical-Tray Flame Test
  • -40°C Cold Bend and -40°C Cold Impact
  • HALOGEN-FREE

AC90 Cable Applications:

Manufactured, tested and certified in China, AC90 armoured building wire is rated FT4-ST1, -40°C to 90°C and engineered specifically for demanding environments and superior flammability & smoke emission performance.
For exposed or concealed wiring in dry locations only.
Use in ventilated, non-ventilated and ladder-type cable trays or service entrances above ground.

4 Core Aluminum Conductor ACWU90 Cable Parameter

CONDUCTOR SIZE BONDING CONDUCTOR SIZE INSULATION THICKNESS ARMOUR O.D. CABLE O.D. AMPACITY (A)
6 AWG 8 AWG 0.045 in. 0.885 in. 0.970 in. 44
1.14 mm 22.48 mm 24.64 mm
4 AWG 6 AWG 0.045 in. 1.030 in. 1.115 in. 60
1.14 mm 26.16 mm 28.32 mm
2 AWG 6 AWG 0.055 in. 1.135 in. 1.220 in. 80
1.40 mm 28.83 mm 31.99 mm
1 AWG 4 AWG 0.055 in. 1.280 in. 1.380 in. 92
1.40 mm 32.51 mm 35.05 mm
1/0 AWG 4 AWG 0.055 in. 1.360 in. 1.460 in. 108
1.40 mm 34.54 mm 37.08 mm
2/0 AWG 4 AWG 0.055 in. 1.520 in. 1.620 in. 120
1.40 mm 38.61 mm 41.15 mm
3/0 AWG 4 AWG 0.055 in. 1.595 in. 1.695 in. 140
1.40 mm 40.51 mm 43.05 mm
4/0 AWG 4 AWG 0.065 in. 1.716 in. 1.816 in. 164
1.65 mm 43.59 mm 46.13 mm
250 kcmil 2 AWG 0.065 in. 1.875 in. 1.975 in. 184
1.65 mm 47.63 mm 50.17 mm
300 kcmil 2 AWG 0.065 in. 2.050 in. 2.150 in. 208
1.65 mm 52.07 mm 54.61 mm
350 kcmil 2 AWG 0.065 in. 2.155 in. 2.255 in. 224
1.65 mm 54.74 mm 57.28 mm
400 kcmil 2 AWG 0.065 in. 2.240 in. 2.340 in. 244
1.65 mm 56.90 mm 59.44 mm
500 kcmil 1 AWG 0.065 in. 2.475 in. 2.575 in. 280
1.65 mm 62.87 mm 65.41 mm
600 kcmil 1 AWG 0.080 in. 2.800 in. 2.930 in. 308
2.03 mm 71.12 mm 74.42 mm
750 kcmil 1/0 AWG 0.080 in. 3.010 in. 3.140 in. 348
2.03 mm 76.45 mm 79.76 mm
