Instrumentation & Control Cable

Get Quote

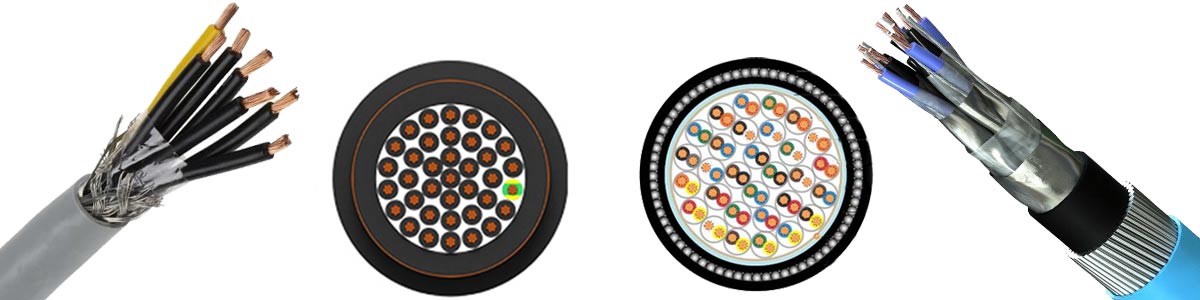

Instrumentation Cable Application
Instrumentation cables have very diverse applications, manufactured to BS 5308, these cables are designed for use in communication and instrumentation applications in and around process industries like oil exploration, cement, paper, steel, power generation, and others. cables made to specific rigid requirements are utilized in-process controls, the transmission of signals, computers, control systems, and monitor networks as well as in intrinsically safe systems in hazardous areas like petrochemical plants and thermal power plants.

Control Cable Application
Control cable is used for installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use in conditions of light mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or moist conditions indoors.

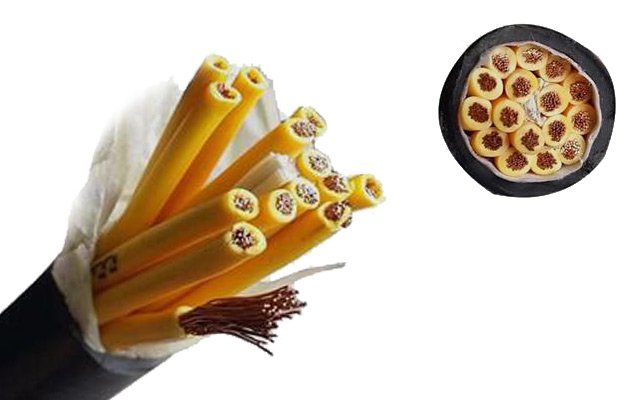

Conductor: Concentric stranded copper wire
Cores: 2-30 core
Insulation: PVC Black color
Identification: Printed White number on the surface of Black insulation
Filler: Suitable filler
Binding tape: Suitable tape
Sheath: PVC Black color
Application: For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

Conductor: Concentric Stranded copper wire
Core: 2-15 cores
Insulation: PVC Black color
Identification: Printed White number on the surface of Black insulation
Filler: Suitable filler
Binding tape: Suitable tape
Inner sheath: PVC Black color
Shield: Annealed copper tape
Binding tape: Suitable tape
Outer Sheath: PVC Black color

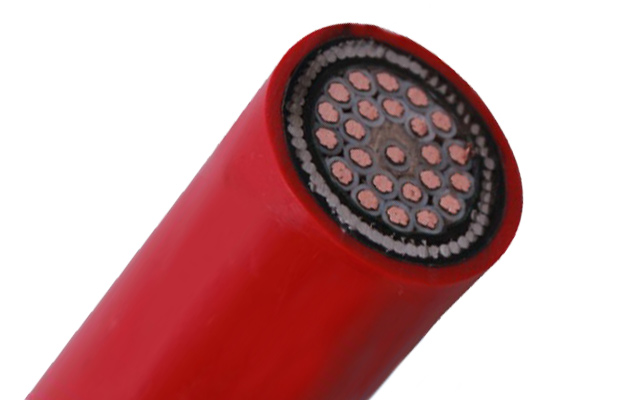

Conductor: Annealed copper wire
Insulation: PVC Black color
Core: 2-30 Core
Identification: Printed White number on the surface of Black insulation
Filler: Suitable filler
Binding tape: Suitable tape
Inner sheath: PVC Black color
Armor: Galvanized steel wire
Binding tape: Suitable tape
Outer Sheath: PVC Black color

Conductor: Class 5 flexible copper conductor
Insulation: Halogen-Free Compound Type TI6
Sheath: LSZH (Low Smoke Zero Halogen)
Voltage Rating:  300/500V
Core Identification
Black with; White numbers (3 core and above includes Green/Yellow)
Colored Cores:
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour: Grey

Voltage Rating: (Uo/U) 300/500V

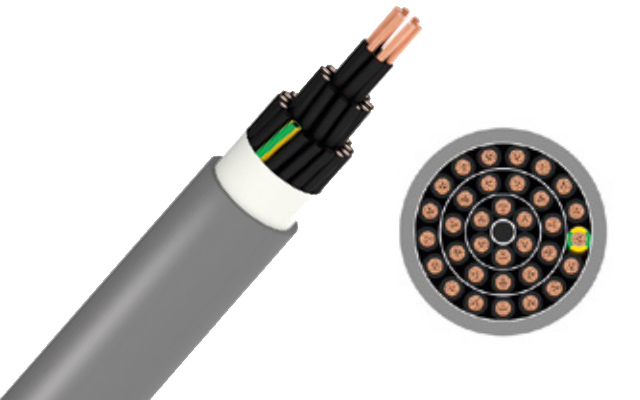

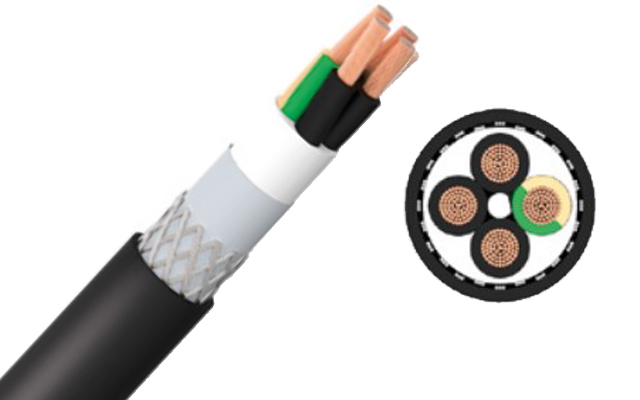

Conductor: Class 5 flexible copper conductor
Insulation: LSZH PVC Type TI6
Bedding: LSZH  Type TM7
Braiding: GSWB (Galvanized Steel Wire Braid)
Sheath: PVC LSZH Type TM7
Temperature Rating: -15ºC to +70°C Minimum
Core Identification
3 core: Blue Brown Green/Yellow
4 core: Brown Black Grey Green/Yellow
5 core: Blue Brown Black Grey Green/Yellow
Sheath Colour: Black

Voltage: 300/500V
Conductor: Concentric Stranded annealed copper wire
Insulation: PVC Black color
Core: 2-30 Core
Sheath: PVC
Temperature range
flexing -15 °C up to +80 °C/fixed installation -40 °C up to +80 °C
Application: in mechanical and plant engineering, machine tools, production lines and conveyor belts.

Type: Multi-pair
Insulated: PE(Polyethylene)
Pairing: Two insulated cores shall be uniformly twisted together to form a pair with a maximum lay length of 100mm
Individual Screening: Each pair screen with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Overall Screening: accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Bedding: PE(Polyethylene), color black
Armoring: GSW over the bedding
Sheath: PVC(Polyvinyl Chloride)

Voltage: 300/500V
Type: Multi-pair
Insulated: PE(Polyethylene)
Pairing: Two insulated cores shall be uniformly twisted together to form a pair with a maximum lay length of 100mm
Individual Screening: Each pair screen with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Cabling: Twisted pairs are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.
Overall Screening: accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Sheath: PVC(Polyvinyl Chloride)

Voltage: 300/500V
Conductor: circular stranded copper
Type: Single Pair or multi-pair
Insulated: PE(Polyethylene)
Pairing: Two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100mm
Cabling: Twisted pairs are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.
Overall Screening: accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Sheath: PVC(Polyvinyl Chloride)
