Application

The swa armoured cable designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.Such as: power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings.

Feature

Max conductor operating temperature: 90 deg C
Short circuit temperature: >250 deg C no more than 2 seconds
Environment temperature of laying: 25 deg C (in air) 15 deg C (underground)
Depth of laying in direct: 100cm
Coefficient of thermal resistivity of soil: 100 deg C .cm/w
Coefficient of thermal resistivity of PVC: 700 deg C .cm/w

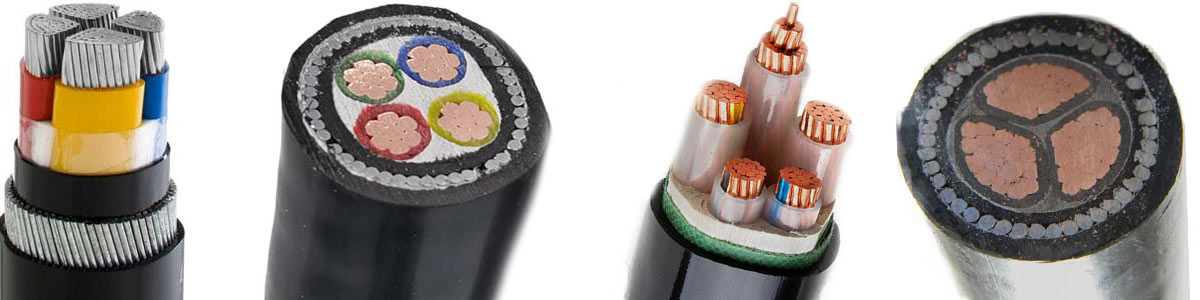

Types of 0.6/1KV Power Cable

Type No. of Core Nominal Cross-section of conductor  mm2
Cu(Al)/XLPE/PVC(PE)Cu(Al)/XLPE/ATA/PVC(PE)

Cu(Al)/XLPE/AWAPVC(PE)

 1 1.5-1000
Cu(Al)/XLPE/STA/PVC(PE)
Cu(Al)/XLPE/SWA/PVC(PE)		 2, 3, 4, 5 1.5-400
3+1, 4+1, 3+2 2.5-400

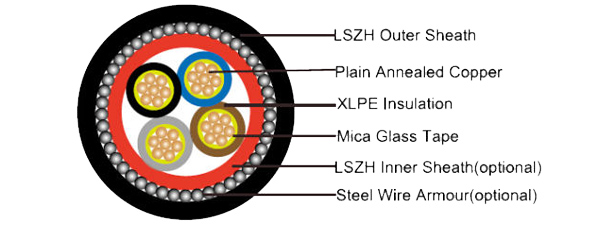

0.6/1KV Al/Cu Core 1.5mms~100mm2 Structure

Nominal Cross-section  mm2 1.5 2.5 4 6 10 16 25
Cu core 12.1 7.41 4.61 3.08 1.83 1.15 0.727
Al core 18.1 12.1 7.41 4.61 3.08 1.91 1.20
Nominal Cross-section  mm2 35 50 70 95 120 150 185
Cu core 0.524 0.387 0.268 0.193 0.153 0.124 0.0991
Al core 0.868 0.641 0.443 0.320 0.253 0.206 0.164
Nominal Cross-section  mm2 240 300 400 500 630 800 1000
Cu core 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221 0.0176
Al core 0.125 0.100 0.0778 0.0605 0.0469 0.0367 0.0291

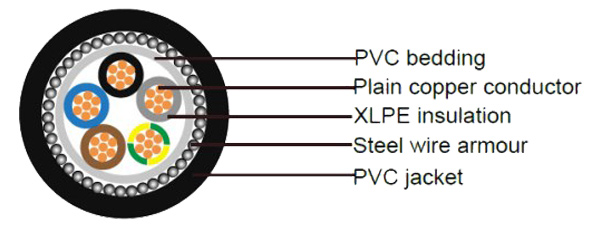

0.6/1KV 1~5 Core Armoured Cable Pramter

No. Cores Conductor Cross Section Area (mm²) Cable Cross Section Area (mm²) Actual Armoure Section Area (mm²) Overall Diameter (mm) Gland Size Cleat Size Nominal Weight (kg/km)
2 16 326.69 42 20.4 25 9 978
2 25 455.94 42 24.1 25 10 1290
2 35 426.17 60 23.3 25 10 1500
2 50 522.53 68 25.8 32 11 1890
2 70 660.19 80 29 32 12 2450
2 95 860.05 113 33.1 40 14 330
3 16 366.25 45 21.6 25 10 1152
3 25 510.45 62 25.5 32 11 1800
3 35 615.44 68 28 32 11 2230
3 50 637.62 78 28.5 32 12 2490
3 70 813.92 90 32.2 40 14 3290
3 95 1074.67 128 37 40 16 4440
4 16 411.66 49 22.9 25 11 1360
4 25 597.98 70 27.6 32 12 2160
4 35 725.47 78 30.4 32 12 2690
4 50 803.84 90 32 32 14 3130
4 70 1115.71 131 37.7 40 16 4500
4 95 1365.03 147 41.7 50 18 5600
5 16 411.66 72 22.9 / 10 1400
5 25 655.64 88 28.9 / 12 2100
5 35 808.87 100 32.1 / 14 2580
5 50 1133.54 144 38 / 16 3850
