Our comprehensive range of mining cables covers both static and dynamic equipment applications, and low and medium voltage infrastructure installations, manufactured in accordance with relevant international standards including BS EN/IEC 60332, BS EN/IEC 60811, BS EN/IEC 60754, IEC 60754-2 and VDE 0295.

Our mining, drilling and tunneling cable products are designed to operate in some of the harshest environments on earth.We supply mining cables capable of safely working in enclosed spaces, providing protection to people and high-value equipment in the event of fire by emitting reduced smoke and fumes

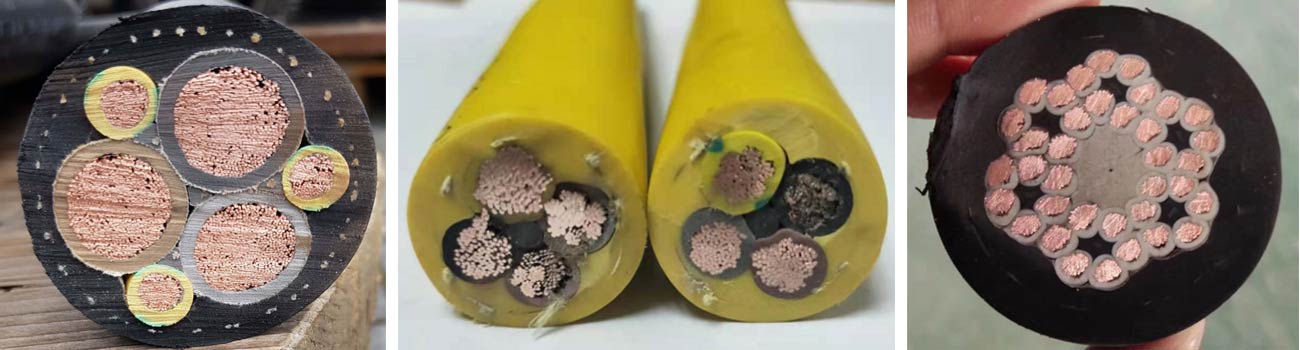

recommend Rubber Mining/Drilling/Tunnelling Cable Products

VFD (Variable Frequency Drive) Cable

EMC VFD cable has been specially designed for Variable Frequency Drive Motors and installations where it is necessary to limit the effects of electromagnetic interference.

2PNCT/3PNCT Cable For Mobile Machine

The cable is mainly used for mobile machines such as Hoist & hoppers, Unloader Reclaimer, Crane Elevator, Impact Resistance Stacker & Reclaimer, Shield machine.

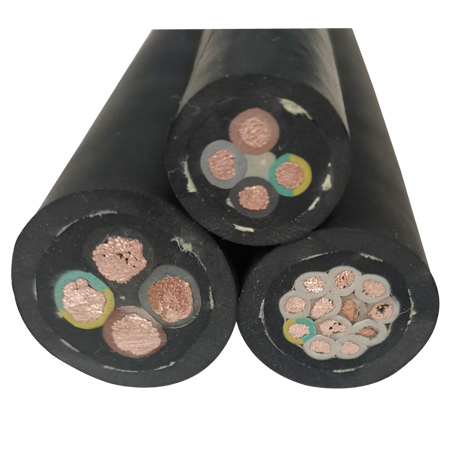

NSHTOU Trailing Reeling Crane Cable

The cable used as robust and all-weather resistant cables of roughest operations in mining and inflexible handling equipment and railway motors.

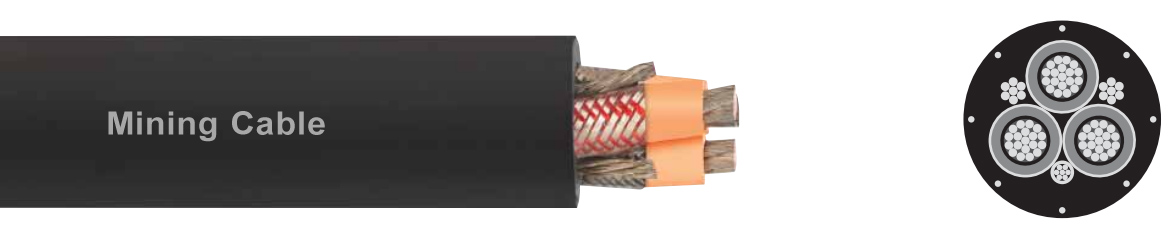

Round Type Mining/Driling/Tunneling Cable

Voltage: 2kv,5kv,8kv,15kv
Core: 3+3 Core
Conductor: coated annealed copper, bunched wires
Insulation/Jacke:  EPR/CPE
Insulation Shield: flexible coated copper/textile braid shield is applied over non-conducting overlapped tape
Ground-Check Conductor:  Annealed copper, rope-lay-stranded per ASTM
Grounding Conductors:
• Coated copper, rope-lay-stranded per ASTM
• Two conductors in contact with the flexible copper braid shield

Applications:
• Designed for use as trailing cables on AC mining equipment:
– Where a ground-check conductor is required for fail-safe monitoring
– With Bretby-type cable handling devices on
longwall shearers
– Where induced voltages in the grounding the system will not produce a hazard
– On low- and medium-voltage AC circuit
Features:
• Flexible insulation shield provides shock hazard protection
• Excellent heat, moisture, steam, oil, chemical, and radiation resistance

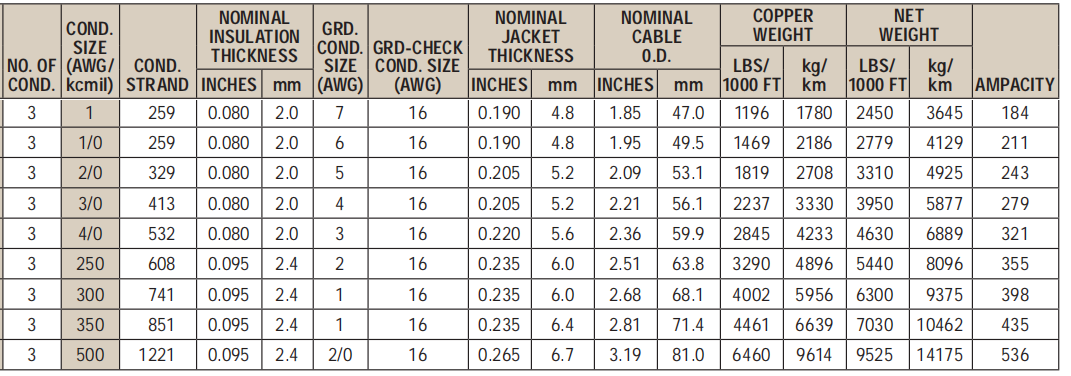

Round Type Mining/Driling/Tunneling Cable Paramter

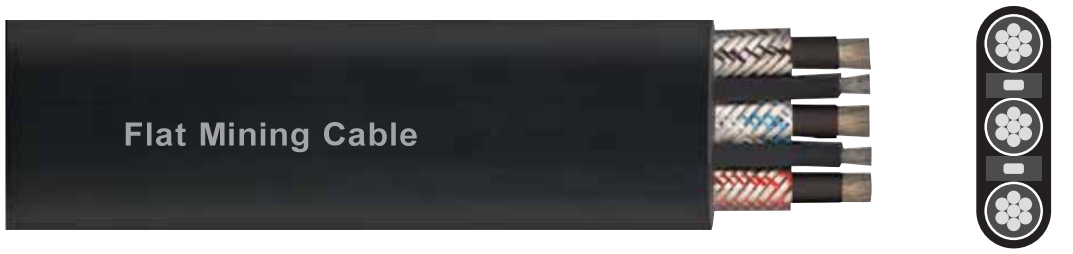

Flat Type Mining/Driling/Tunneling Cable

Conductor: 2 AWG thru 3/0 AWG coated annealed copper,
bunched wires, rope-lay-stranded per ASTM
Insulation: Ethylene Propylene Rubber (EPR)
Insulation Shield: A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape
Grounding Conductors:
Coated copper, rope-lay-stranded per ASTM
Two conductors, shaped and covered with an extruded semi-conducting shield
Jacket: Reinforced, extra-heavy-duty, lead-cured CPE

Applications: Designed for use as trailing cables on AC mining equipment:

– Where induced voltages in the grounding system will not produce a hazard
– On low- and medium-voltage AC circuits where shielding is desired or required

Features:

  • Flexible insulation shield provides shock hazard protection
  • Excellent heat, moisture, steam, oil, chemical and radiation resistance
  • Flexible for easy handling

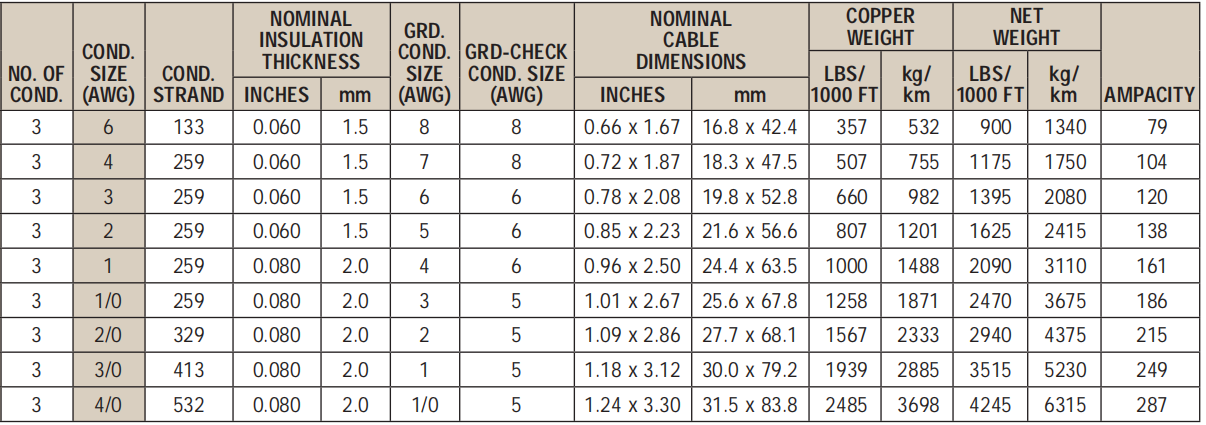

Flat Type Mining/Driling/Tunneling Cable Paramter
