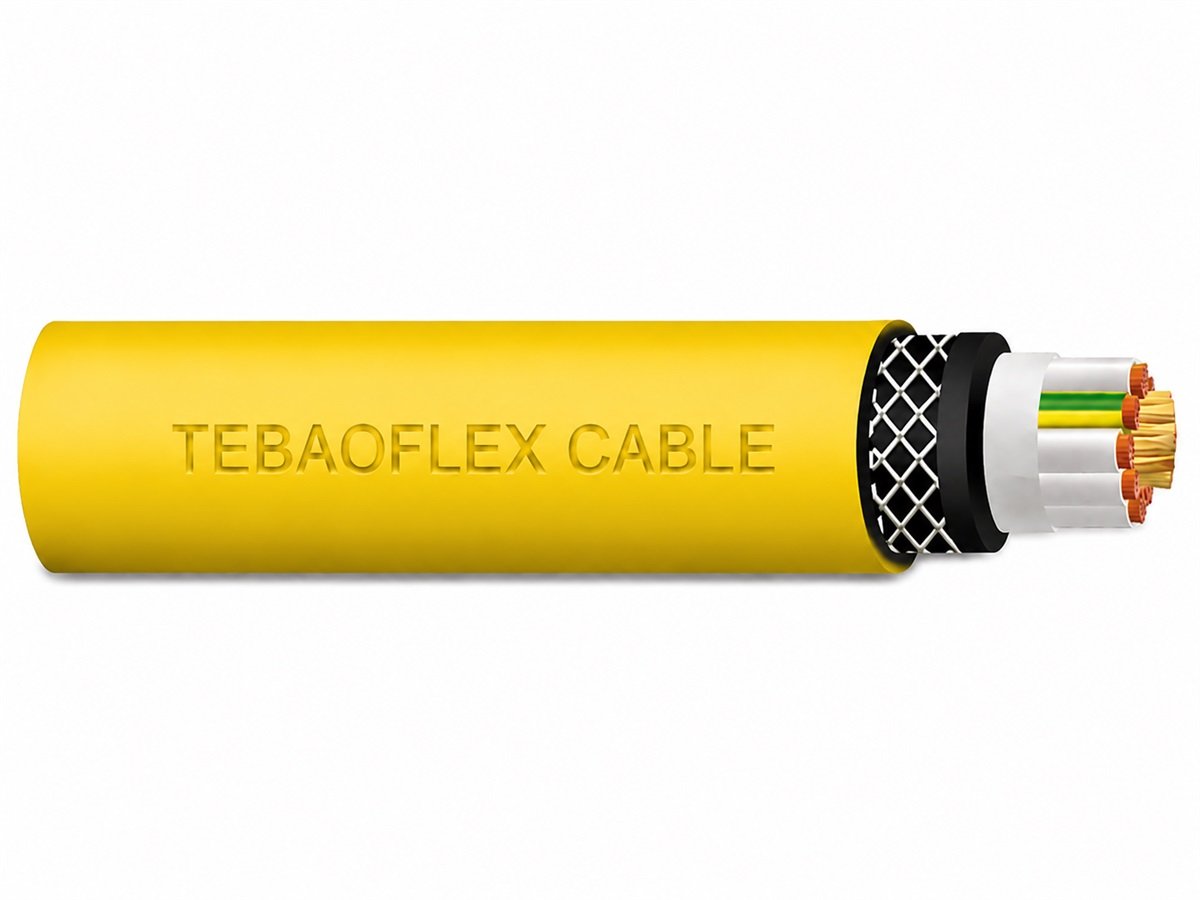

(N)12YRD11YT11Y-J 0.6/1 kV
(N)12YRD11YT11Y-J is a highly flexible, halogen-free 0.6/1 kV round festoon cable designed for mobile equipment and festoon systems exposed to demanding mechanical conditions.
The combination of flexible conductors, high-performance insulation and a robust PUR outer sheath provides excellent resistance to abrasion, oil, weathering and repeated bending.

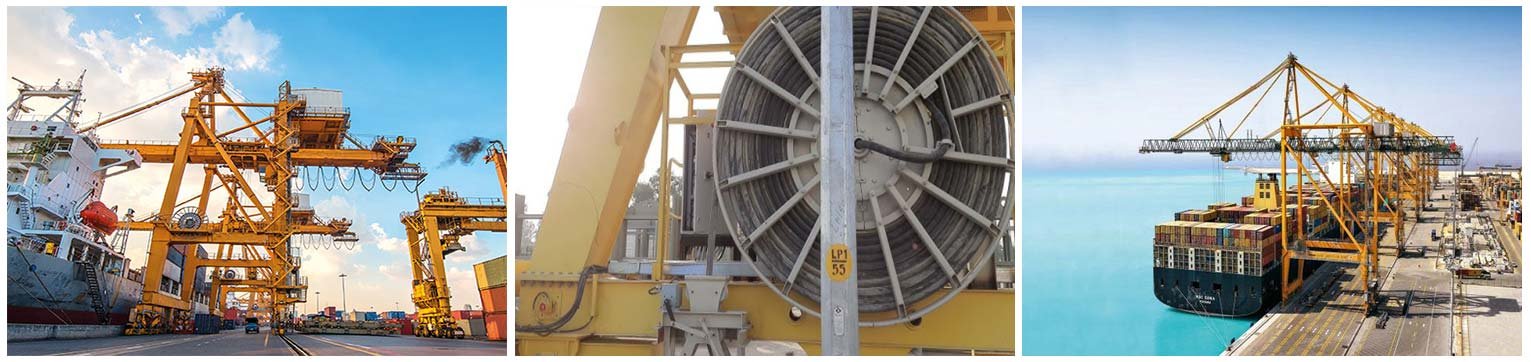

It is particularly suitable for cranes, gantry cranes, container handling equipment, conveyors and other mobile industrial machinery where reliable power and control transmission is required under continuous movement.

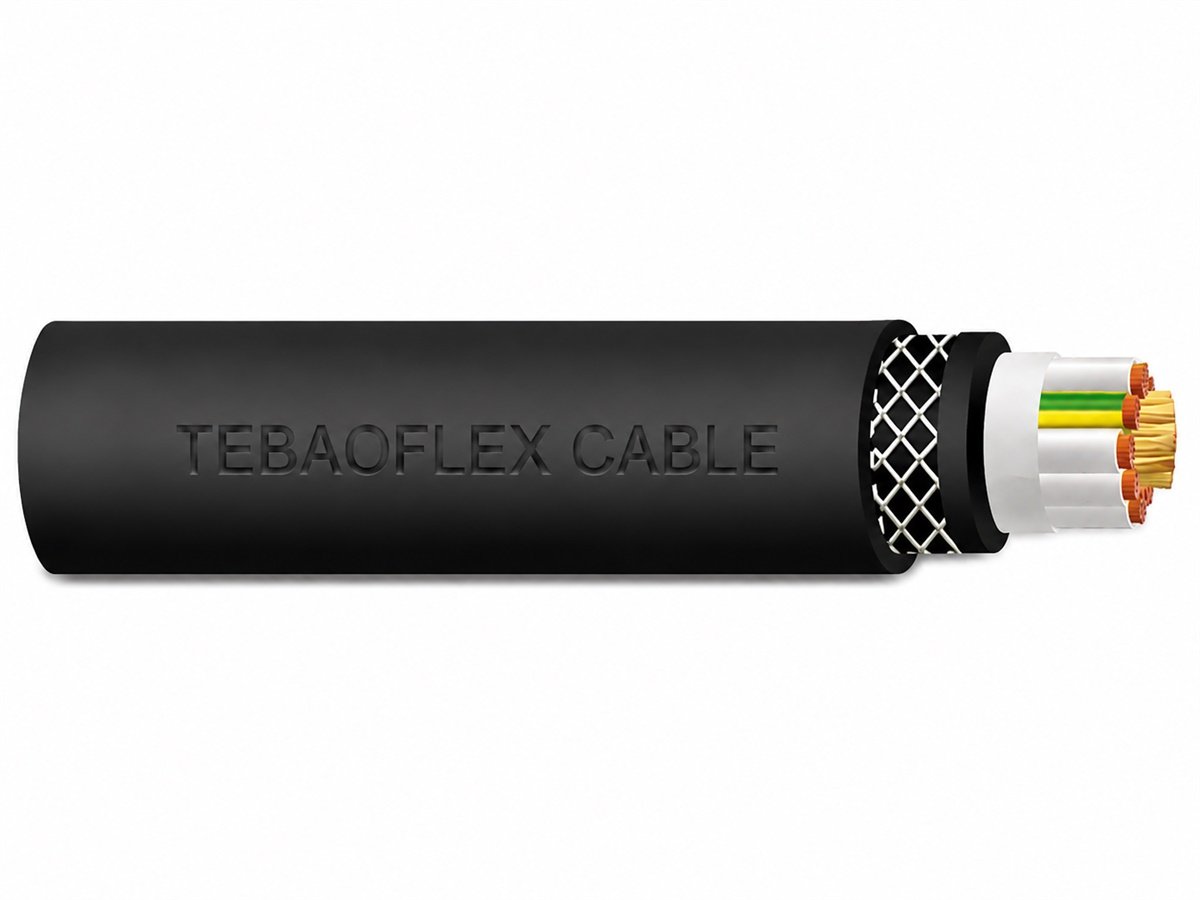

Design of N12YRD11YT11Y-J PUR Crane Cable
| Conductor | bare copper wires, finely stranded, class 5 acc. to DIN EN/IEC 60228 |
|---|---|
| Insulation | based on polyester, core identification: acc. to DIN 0293-308 up to 5 wires colored, from 6 wires white, numbered (with or without green/yellow protective conductor) |
| Core arrangement | cores stranded in layers around central element (central supporting element – aramid yarns) |
| Inner sheath | halogen-free PUR compound; colour: black |
| Reinforcement | textile braid between the sheaths |
| Outer sheath | halogen-free PUR compound; colour: black, matt, inkjet marking |
Voltage Electrical Parameters
| Rated voltage U0/U | 0.6/1 kV |
|---|---|
| Max. permissible operating voltage Ubmax in AC systems | 0.7/1.2 kV |
| Max. permissible operating voltage Ubmax in DC systems | 0.9/1.8 kV |
| AC test voltage | 2.5 kV |
| Current-carrying capacities in amperes acc. to | DIN VDE 0298-4 |
(N)12YRD11YT11Y-J is Halogen–free power and control cable for very high mechanical requirements,frequent bendings,especially for use in trolley systems,drag chains on moving parts of machines and conveyor facilities.Suitable for dry and wet rooms as well as for outdoor use.
(N)12YRD11YT11Y-J Cable is also suitable for permanent use in water (AD8)up to 50m depth (not permitted for use in drinking water).
Typical applications include:
- Gantry Cranes
- Container Cranes
- Overhead Cranes
- Port Cranes
- Festoon Cable Systems
- Cable Trolley Systems
- Material Handling Equipment
- Conveyor Systems
- Mobile Machinery
- Industrial Lifting Equipment
- Steel Plants
- Mining and Bulk Material Handling Equipment
The cable is especially suitable for installations where high flexibility, abrasion resistance and mechanical durability are required.
Technical Data
Thermal Parameters
| Ambient temperature | Fixed installation: -50 °C to 90 °CFlexible operation: -40 °C to 90 °C |
|---|---|
| Max. permissible conductor temp. | 90 °C |
| Max. short-circuit temp. at conductor | 250 °C |
Mechanical Parameters
| Max. tensile load per conductor | 25 N/mm2 |
|---|---|
| Bending radius | Fixed installation: ≥ 6 × outer-ØFree moving: ≥ 7,5 × outer-Ø |
Chemical Parameters
| Resistance to oil | DIN EN/IEC 60811-404 |
|---|---|
| Behaviour in case of fire | DIN EN/IEC 60332-1-2 |
| Weather resistance | unrestricted use indoors, outdoors, resistance to ozone, UV and moisture |
Feature
Technical Parameter Datasheet
(N)12YRD11YT11Y-J Flexible Crane Cable
| Cat. no. | n × mm2 | Outer diameter* min. – max. [mm] | Approximate cable weight* [kg/km] |
|---|---|---|---|
| Tebaofex00758 | (N)12YRD11YT11Y-J 5 x 1,5 | 12,3 - 13,8 | 195 |
| Tebaofex00759 | (N)12YRD11YT11Y-J 5 x 2,5 | 14,0 - 15,5 | 270 |
| Tebaofex00760 | (N)12YRD11YT11Y-J 5 x 4 | 16,0 - 17,5 | 380 |
| Tebaofex00761 | (N)12YRD11YT11Y-J 5 x 6 | 17,9 - 19,4 | 505 |
| Tebaofex00762 | (N)12YRD11YT11Y-J 5 x 10 | 20,7 - 22,7 | 750 |
| Tebaofex00763 | (N)12YRD11YT11Y-J 5 x 16 | 23,7 - 25,7 | 180 |
| Tebaofex00764 | (N)12YRD11YT11Y-J 7 x 1,5 | 13,9 - 15,4 | 255 |
| Tebaofex00765 | (N)12YRD11YT11Y-J 7 x 2,5 | 15,7 - 17,2 | 350 |
| Tebaofex00766 | (N)12YRD11YT11Y-J 12 x 1,5 | 18,2 - 19,7 | 440 |
| Tebaofex00767 | (N)12YRD11YT11Y-J 12 x 2,5 | 21,4 - 23,4 | 635 |
| Tebaofex00768 | (N)12YRD11YT11Y-J 18 x 1,5 | 18,6 - 20,1 | 500 |
| Tebaofex00769 | (N)12YRD11YT11Y-J 18 x 2,5 | 21,7 - 23,7 | 730 |
| Tebaofex00770 | (N)12YRD11YT11Y-J 24 x 1,5 | 21,6 - 23,6 | 675 |
| Tebaofex00771 | (N)12YRD11YT11Y-J 24 x 2,5 | 25,5 - 27,5 | 985 |
| Tebaofex00772 | (N)12YRD11YT11Y-J 28 x 1,5 | 23,1 - 25,1 | 920 |
| Tebaofex00773 | (N)12YRD11YT11Y-J 30 x 1,5 | 23,9 - 25,9 | 835 |
| Tebaofex00774 | (N)12YRD11YT11Y-J 30 x 2,5 | 28,3 - 30,3 | 1230 |
| Tebaofex00775 | (N)12YRD11YT11Y-J 36 x 2,5 | 28,3 - 30,3 | 1315 |
| Tebaofex00776 | (N)12YRD11YT11Y-J 48 x 1,5 | 28,6 - 30,6 | 1535 |
| Tebaofex00777 | (N)12YRD11YT11Y-J 4G16+2X(4X1,5)C | 25,8 - 27,8 | 1190 |
| Tebaofex00778 | (N)12YRD11YT11Y-J 4G35+2X(4X1,5)C | 34,7 - 36,7 | 2195 |
Technical parameters from the supplied cable datasheet.
