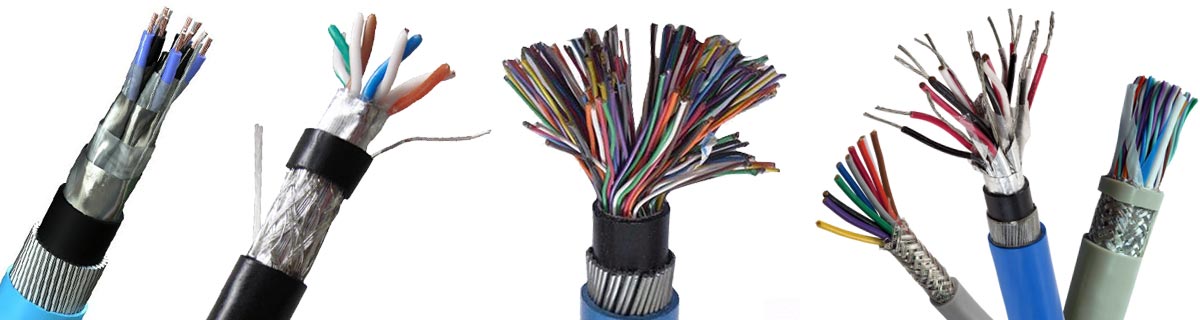

Instrumentation cables have very diverse applications, manufactured to BS 5308, these cables are designed for use in communication and instrumentation applications in and around process industries like oil exploration, cement, paper, steel, power generation, and others. cables made to specific rigid requirements are utilized in-process controls, the transmission of signals, computers, control systems, and monitor networks as well as in intrinsically safe systems in hazardous areas like petrochemical plants and thermal power plants.

Overall Screen Armoured Instrumentation Cable

Voltage: 300/500V
Conductor: circular stranded copper
Type: Single pair or multi-pair
Insulated: PE(Polyethylene)
Pairing: Two insulated cores shall be uniformly twisted together to form a pair with the maximum lay length of 100mm
Cabling: Twisted pairs are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.
Overall Screening: accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Bedding: PE(Polyethylene), color black
Armoring: Galvanized steel round wire over the bedding
Sheath: PVC(Polyvinyl Chloride)

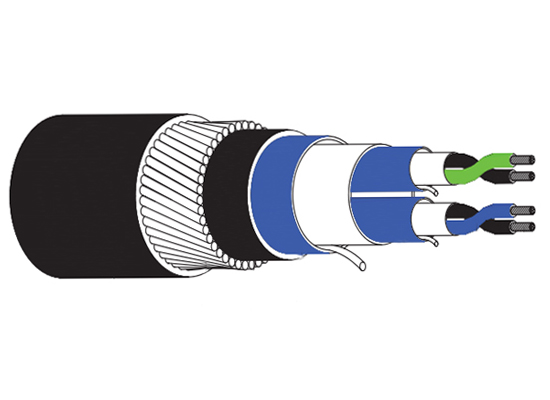

Individual+Overall Screen Armoured Instrumentation Cable

Voltage: 300/500V
Conductor: circular stranded copper
Type: Multi-pair
Insulated: PE(Polyethylene)
Pairing: Two insulated cores shall be uniformly twisted together to form a pair with the maximum lay length of 100mm
Cabling: Twisted pairs are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.
Individual Screening: Each pair screen with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Overall Screening: accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Bedding: PE(Polyethylene), color black
Armoring: Galvanized steel round wire over the bedding
Sheath: PVC(Polyvinyl Chloride)

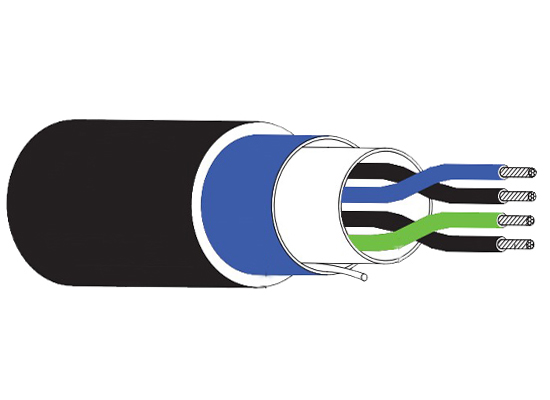

PE/PVC Overall Screen Instrumentation Cable

Voltage: 300/500V
Conductor: circular stranded copper
Type: Single Pair or multi-pair
Insulated: PE(Polyethylene)
Pairing: Two insulated cores shall be uniformly twisted together to form a pair with the maximum lay length of 100mm
Cabling: Twisted pairs are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.
Overall Screening: accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Sheath: PVC(Polyvinyl Chloride)

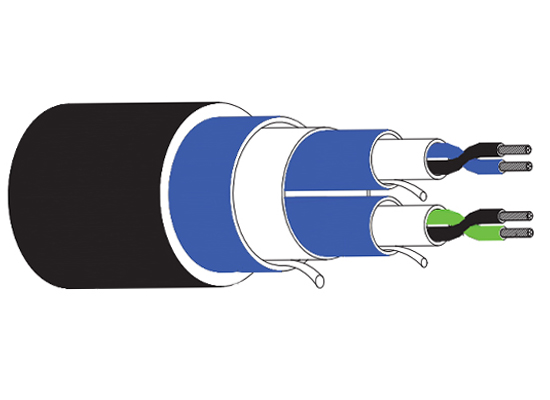

Individual+Overall Screen Instrumentation Cable

Voltage: 300/500V
Conductor: circular stranded copper
Type: Multi-pair
Insulated: PE(Polyethylene)
Pairing: Two insulated cores shall be uniformly twisted together to form a pair with the maximum lay length of 100mm
Individual Screening: Each pair screen with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Cabling: Twisted pairs are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.
Overall Screening: accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Sheath: PVC(Polyvinyl Chloride)
