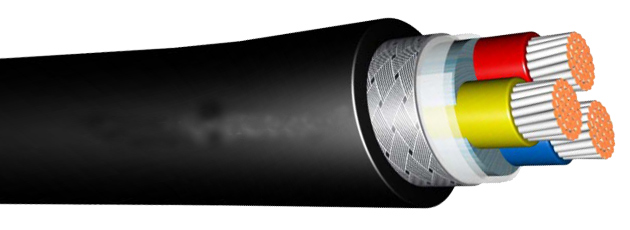

0.6/1KV Marine Power Cable

Voltage: 0.6/1KV
Type: CJPF/SC, CJPJ/SC
Conductor: Stranded tinned annealed copper, IEC 60228 Class 2
Insulation: XLPE, IEC 60092-360
Outer sheath: Halogen-free flame retardant thermoplastic compound (SHF1)
Flammability: LSHF Flame retardant
Max.rated conductor temperature:90℃

Application
The cable is intended for power lighting and control system of shipboard andoff-shore building such as oil platform. It is also available to metallurgical industy,chemical works, power plant and corporation mining etc.

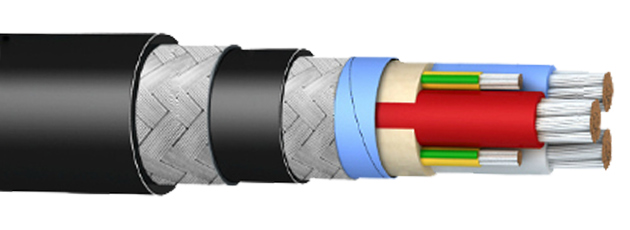

0.6/1KV,1.8/3KV Marine VFD Cable

Voltage: 0.6/1KV,1.8/3KV
Type: CJ85/SC-VFD,CJ86/SC-VFD
Conductor: Stranded tinned annealed copper, IEC 60228 Class 5
Insulation: XLPE, IEC 60092-360
Collective screen: CU/PS tape with tinned copper drain wire
Armor: Tinned copper wire braid (TCWB)
Outer sheath: Halogen-free flame retardant thermoplastic compound (SHF1)
Flammability: LSHF Flame retardant

Application
The cable is intended for power lighting and control system of shipboard and off-shore building such as oil platform. It is also available to metallurgical industy, chemical works, power plant and corporation mining etc.

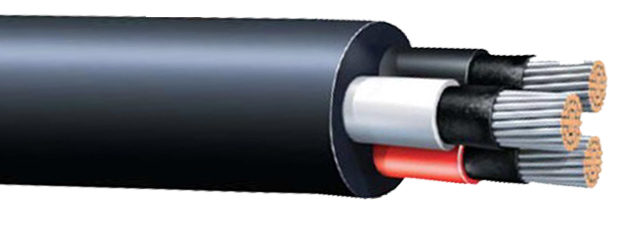

0.6/1KV Marine EPR Cable

Voltage: 0.6/1KV
Conductor: Stranded tinned annealed copper, IEC 60228 Class 5
Insulation: EPR, IEC 60092-360
Laying up: Cores are laid up together
Sheath: PCP/PVC
Construction: Flexible copper conductor
Flammability: LSHF Flame retardant

Application
The cable is intended for power lighting and control system of shipboard and off-shore building such as oil
platform. It is also available to metallurgical industy, chemical works, power plants and corporation mining etc

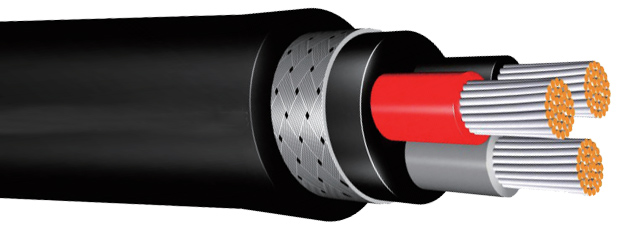

Marine RFOU/TFOU Cable

Voltage: 0.6/1(1.2)KV-P1/P8
NEK TS 606 Type:
P1—Non mud resistant
P1/P8—Mud resistant
Conductor: Stranded tinned annealed copper (STC), IEC 60228 Class 2
Insulation: EPR/XLPE
Inner covering: Halogen-free flame retardant compound
Armor: Tinned copper wire braid (TCWB)
Outer sheath: Halogen-free flame retardant or/and mud resistant thermoset compound (SHF2 or SHF Mud)

Application
Fixed installation for lower voltage (LV) power system in both EX-and safe areas, general purposes. For installation in areas exposed to MUD and drilling/cleaning fluids.

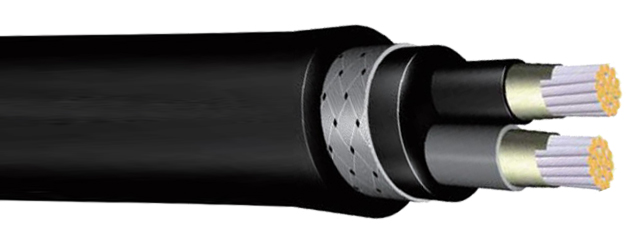

Marine BFOU Cable

Voltage: 0.6/1(1.2)KV-P5,P5/P12
NEK TS 606 Type：
P5—Non mud resistant
P2/P12—Mud resistant
Conductor: Stranded tinned annealed copper (STC), IEC 60228 Class 2
Insulation: Mica glass tape(MGT) + EPR, or Mica glass tape(MGT)+XLPE
Inner covering: Halogen-free flame retardant compound
Armor: Tinned copper wire braid (TCWB)
Outer sheath: Halogen-free flame retardant or/and mud resistant thermoset compound (SHF2 or SHF Mud)

Application
Fixed installation for lower voltage (LV) power system in both EX-and safe areas, general purposes. For installation in areas exposed to MUD and drilling/cleaning.

Marine RFOU(i) Instrumentation Cable

Voltage: 250V-S1,S1/S5
NEK TS 606 Type
S1—Non mud resistant
S1/S5—Mud resistant
Conductor: Stranded tinned annealed copper (STC), IEC 60228 Class 2
Insulation: EPR,IEC 60092-360
Inner covering: Halogen-free flame retardant compound
Armor: Tinned copper wire braid (TCWB)
Outer sheath: Halogen-free flame retardant or/and mud resistant thermoset compound (SHF2 or SHF Mud)

Application
Fixed installation for communication, instrumentation, control and alarm systems in both EX–and safe areas. Meets the Mud resistant requirements in NEK 606.

Marine EPR VFD Cable Parameter

Size/mm² Min Diameter/mm Max Diameter/mm Weight (kgs/km)
3×10 25 28.5 1070
3×16 27.5 31 1335
3×25 30.5 34 1715
3×35 33.5 37.5 2145
3×50 37 41 2785
3×70 41.5 46 3645
3×95 47 52 4705
3×120 50.5 55.5 5590
3×150 54 59.5 6615
3×185 59 64.5 7900
3×10+3×4 26.5 29.5 1260
3×16+3×6 29 32.5 1595
3×25+3×6 30.5 34 1935
3×35+3×6 33.5 37.5 2365
3×50+3×10 37 41 3125
3×70+3×16 41.5 46 4160
3×95+3×16 47 52 5220
3×120+3×25 50.5 55.5 6385
3×150+3×25 54 59.5 7415
3×185+3×35 59 64.5 8990

Marine Instrumentation Cable Parameter

Size/mm² Min Dia./mm Max Dia./mm Weight (kgs/km) Size/mm² Min Dia./mm Max Dia./mm Weight (kgs/km)
1×2×0.75 9.8 11.5 145 1×2×1.5 11 13 185
2×2×0.75 13.5 15.5 240 2×2×1.5 16.5 18.5 360
3×2×0.75 14.5 16.5 315 3×2×1.5 17.5 19.5 430
4×2×0.75 15.5 18 365 4×2×1.5 18.5 21 500
5×2×0.75 17 19 420 5×2×1.5 20.5 23 585
7×2×0.75 18 20.5 500 7×2×1.5 22.5 24.5 710
8×2×0.75 20 22.5 570 8×2×1.5 24.5 27.5 815
10×2×0.75 22.5 25 685 10×2×1.5 27.5 30.5 980
12×2×0.75 23 26 750 12×2×1.5 28.5 31.5 1100
14×2×0.75 24 27 825 14×2×1.5 30 33 1225
16×2×0.75 25.5 28.5 920 16×2×1.5 31.5 35 1360
19×2×0.75 26.5 29.5 1025 19×2×1.5 33 36.5 1530
24×2×0.75 31 34.5 1275 24×2×1.5 39.5 44 2070
1×3×0.75 10 12 165 1×3×1.5 11.5 13.5 220
2×3×0.75 15 17 320 2×3×1.5 18 20.5 435
4×3×0.75 17 19.5 440 4×3×1.5 20.5 23.5 625
8×3×0.75 22 25 705 8×3×1.5 27 30.5 1035
10×3×0.75 25 28 845 10×3×1.5 30.5 34 1250
12×3×0.75 25.5 28.5 935 12×3×1.5 31.5 35 1415
16×3×0.75 28 31.5 1155 16×3×1.5 35.5 39.5 1795
24×3×0.75 35 38.5 1650 24×3×1.5 44 48.5 2665
