Flat 3/5KV 3 Core Submerble Oil/Gas Pump ESP Cable

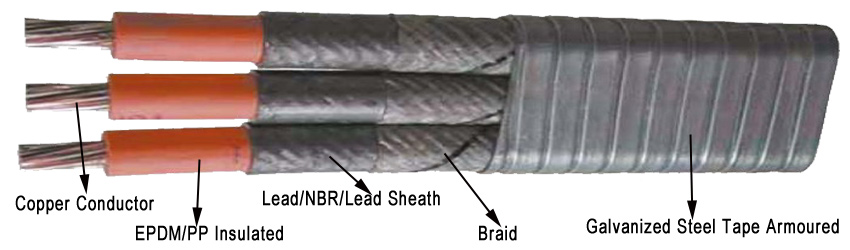

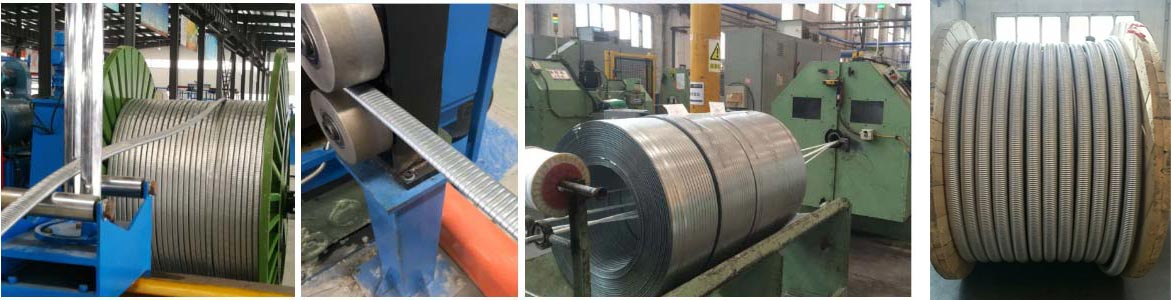

Structure of ESP Cable

  • Type: Flat
  • Voltage: 3KV/5KV
  • Conductor: Solid or stranded plain (or tinned) copper
  • Insulated: PP/EPDM
  • Sheath: NBR/PDM/Lead
  • Armoured: Galvanized Steel Tape
  • Working Temperature: 96℃, 140℃, 204℃ and 232℃.
  • Size: 1AWG, 2AWG, 4AWG, 6AWG.

Flat 3kv EPDM/Lead ESP Cable Parameter
Conductor Specification  PP Insulation Thickness NBR Sheath Thickness Calculated Weight
Conductor Size Outer Diameter
AWG MM2 MM Inch mm Inch mm Lb/ft Kg/m
6 13 4.12 0.067 1.7 0.03 0.76 1.14 1.7
4 20 5.19 0.067 1.7 0.03 0.76 1.41 2.1
2 33 6.54 0.067 1.9 0.03 0.76 1.75 2.6
1 42 7.35 0.067 1.9 0.03 0.76 2.02 3

Flat 5kv EPDM/Lead ESP Cable Parameter
Conductor Specification  PP Insulation Thickness NBR Sheath Thickness Calculated Weight
Conductor Size Outer Diameter
AWG MM2 MM Inch mm Inch mm Lb/ft Kg/m
6 13 4.12 0.075 1.9 0.03 0.76 1.24 1.85
4 20 5.19 0.075 1.9 0.03 0.76 1.5 2.23
2 33 6.54 0.075 1.9 0.06 0.76 1.86 2.77
1 42 7.35 0.075 1.9 0.06 0.76 2.11 3

Application:

the Submersible oil pump Cable is used for the power of ESP units which is installed on land or offshore oil wells

Character:

  • High temperature / high pressure resistance
  • High resistance to aggressive chemical environments
  • Handling flexibility
  • Ease of installation and maintenance

Round 3 Core EPMD/NBR Submersible Oil Pump ESP Cable

  • Type: Round
  • Voltage: 3KV/5KV
  • Conductor: Solid or stranded plain (or tinned) copper
  • Insulated: PP/EPDM
  • Sheath: NBR/PDM/Lead
  • Armoured: Galvanized Steel Tape
  • Working Temperature: 96℃, 140℃, 204℃ and 232℃.
  • Size: 1AWG, 2AWG, 4AWG, 6AWG.

Round 3kv PP/NBR ESP Cable Parameter
Conductor Specification  PP Insulation Thickness NBR Sheath Thickness Calculated Weight
Conductor Size Outer Diameter
AWG MM2 MM Inch mm Inch mm Lb/ft Kg/m
6 13 4.12 0.075 1.9 0.06 1.52 0.85 1.26
4 20 5.19 0.075 1.9 0.06 1.52 0.96 1.43
2 33 6.54 0.075 1.9 0.06 1.52 1.34 2
1 42 7.35 0.075 1.9 0.06 1.52 1.61 2.4

Round 5kv PP/NBR ESP Cable Parameter
Conductor Specification  PP Insulation Thickness NBR Sheath Thickness Calculated Weight
Conductor Size Outer Diameter
AWG MM2 MM Inch mm Inch mm Lb/ft Kg/m
6 13 4.12 0.09 2.3 0.06 1.52 0.94 1.4
4 20 5.19 0.09 2.3 0.06 1.52 1.17 1.74
2 33 6.54 0.09 2.3 0.06 1.52 1.5 2.23
1 42 7.35 0.09 2.3 0.06 1.52 1.73 2.58
