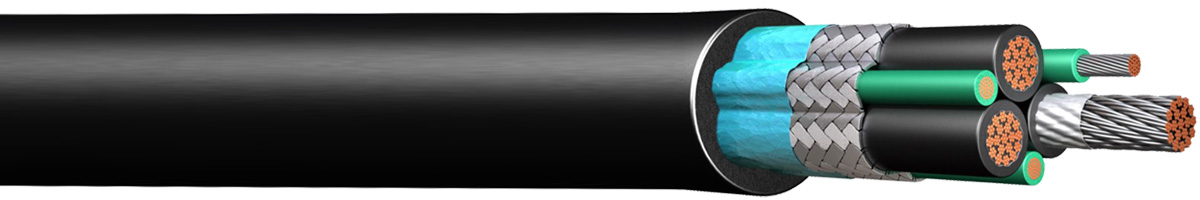

About The VFD Cable Application

VFD cable organizes and protects variable frequency drive input and motor power wiring, and is designed to reduce VFD-related interference (EMI) on nearby equipment. These shielded multi-conductor cables have a black thermoplastic elastomer (TPE) outer jacket and are available with 4 conductors is up to 2 AWG wire sizes.
A variety of constructions and voltages are available including 600V, 2KV, 2KV armored & sheathed, and 8KV and 15KV medium voltage armored & sheathed.  Grounding systems are offered in full conductor size, 3 symmetrical bare, and 3 symmetrical insulated.

0.6/1kv Copper XLPE /LSZH 4 core EMC VFD Cable

Operating Voltage: 0.6/1 kV
Conductor: Stranded Annealed Copper (IEC/EN 60228, Class 5)
Insulation: XLPE (Cross-Linked Polyethylene) Identification
Lay-up: 4 cores twisted together
Separator: Al-PET Foil
Screen: Tinned Copper Wire Braid
Jacket: Halogen Free Flame Retardant Compound (LSZH)- Black
Temperature Range: -30°C~+90°C,
Min. Bending Radius: 10 x Cable Diameter

0.6/1kv XLPE /LSZH 4 core EMC VFD Cable Parameter

Configuration / Cross-Section Cable Diameter Mutual capacitance Coupling resistance Cable Weight
 (mm/mm2)  (mm) (±5%) Core/core approx. (pF/m) Core/screen approx. (pF/m)  At 30 MHz (Ohm/km)  Approx. (kg / km)
4×4 13,7 90 150 210 286
4×6 15,1 90 150 150 373
4×10 17,3 120 200 180 545
4×16 19,8 120 210 190 778
4×25 24,1 140 230 95 1158
4×35 26,3 150 260 85 1542
4×50 30,3 190 320 40 2132
4×70 35,4 190 320 45 2945
4×95 41,1 250 410 50 3826
4×120 45,3 270 430 – 4974
4×150 52,1 280 450 – 6162
4×185 56,4 290 470 – 7710

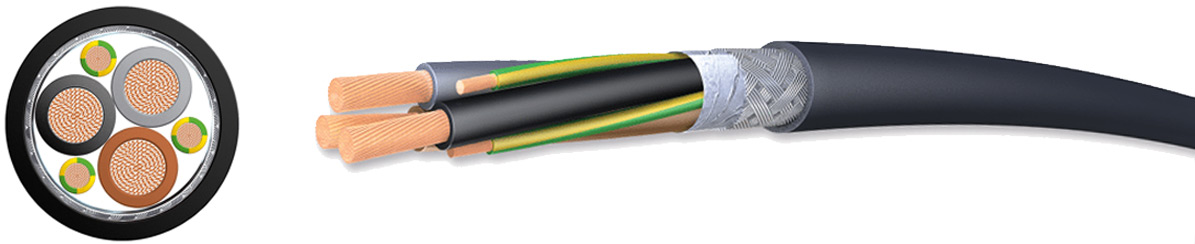

3+3Core EMC VFD Cable for Variable Frequency Drives

Conductor: Electrolytic copper, class 5 (flexible),
Grounding Conductor: The grounding conductor is divided into three conductors; the equivalent cross-section is approximately 50% of the section of the phase conductor.
Insulation: Cross-linked polyethylene (XLPE)
4G : gray + brown + black + Yellow/Green (up to 10 mm2)
3x + 3G : gray + brown + black + Yellow/Green (3G) (from 16 mm2)
Screen: Aluminium-polyester tape screen, helically placed over the insulated conductors. Over the tape there is a tinned copper braid screen. The tape and the braid act as a double screen to cut out all of the electromagnetic interference.
Outer Jacket: Polyolefin LSZH outer sheath with ripcord to allows for ease of stripping of the outer jacket

Application:
EMC VFD cable has been specially designed for Variable Frequency Drive Motors and installations where it is necessary to limit the effects of electromagnetic interference (EMI).

3+3 Core XLPE VDF Cable Parameter

n˚ x Section (mm2) Diameter under the braid (mm) Overall Diameter (mm) Weight (kg/km)
3 x 16 + 3 G 2,5 13,5 17,2 670
3 x 25 + 3 G 4 16,8 21,4 1085
3 x 35 + 3 G 6 19,4 24,1 1455
3 x 50 + 3 G 10 22,8 28,0 2025
3 x 70 + 3 G 10 27,1 32,5 2650
3 x 95 + 3 G 16 30,5 36,1 3455
3 x 120 + 3 G 16 34,6 41,0 4345
3 x 150 + 3 G 25 38,9 45,5 5450
3 x 185 + 3 G 35 43,4 50,4 6755
3 x 240 + 3 G 50 49,2 56,6 8680

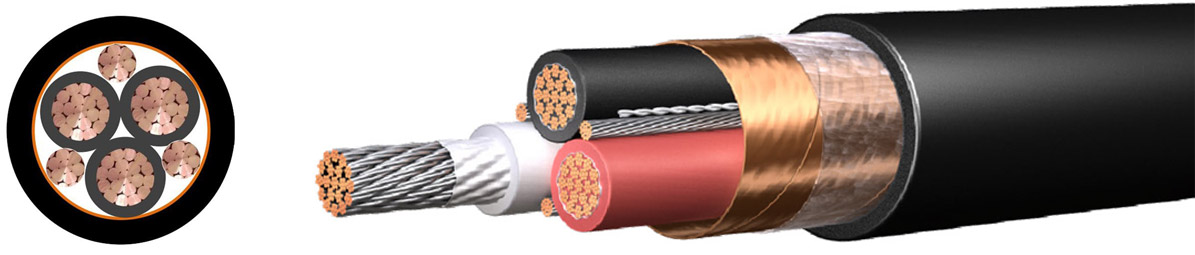

0.6/1KV 3+3 Core XLPO VFD Power Cable

Application

A flexible, shielded power cable specifically engineered for use in variable frequency AC motor drive (VFD) applications.

Structure

  • Voltage: 600/1000V Type TC-ER, -25°C to 90°C
  • Conductor: Stranded tinned copper circuit conductors
  • Insulation: XLPO(Crossed-linked polyolefin, flexible and low dielectric)
  • Color Code: 262MCM and larger: black and numbered
  • 4/0AWG and smaller: red, white, black
  • Grounding Cable: 3 Symmetrical Bare Grounds
  • Shield Layer: Copper Tape Shield
  • Jacket: Black sunlight resistant polyvinyl chloride (PVC)

Advantage Feature:

• Type TC-ER 600V
• 1kV Flexible Motor Supply Cable (up to 4/0 AWG)
• 90°C Temperature Rating
• Sunlight Resistant
• Oil Resistant (Oil Res I)
• Direct Burial (up to 4/0 AWG)
• Meets crush and impact requirements for Type MC cable
• Permitted for Exposed Run (“ER”) use in accordance with the NEC

0.6/1KV 3+3 Core XLPO VFD Power Cable Parameter Data

Size (AWG/ Number of Conductor Conductor Stranding Insulation Thickness (inches) Ground Wire Size (AWG) Ground Wire Stranding Jacket Thickness (inches) Overall Dia. (inches) Weight (lbs/Mft.)
kcmil)
14 3 19 0.03 18 x 3 19 0.06 0.466 158
12 3 19 0.03 16 x 3 19 0.06 0.509 199
10 3 37 0.03 14 x 3 19 0.06 0.552 258
8 3 37 0.045 14 x 3 19 0.06 0.653 368
6 3 61 0.045 12 x 3 19 0.06 0.737 517
4 3 133 0.045 12 x 3 19 0.08 0.956 814
2 3 133 0.045 10 x 3 37 0.08 1.103 1,178
1/0 3 266 0.08 10 x 3 37 0.08 1.447 1,886
2/0 3 323 0.08 10 x 3 37 0.08 1.538 1,951
4/0 3 532 0.08 8 x 3 37 0.11 1.883 3,102
